Electric Friction Color Fastness Tester AATCC Crockmeter Auto Color Fastness to Crocking Machine

Name: Electric Friction Color Fastness Tester AATCC Crockmeter Auto Color Fastness to Crocking Machine
Brand: YUYANG
Price: 1 USD

Quality Electric Friction Color Fastness Tester AATCC Crockmeter Auto Color Fastness to Crocking Machine for sale

Brand Name : YUYANG

Model Number : YY002

Certification : CE

Place of Origin : China

MOQ : Set/Sets

Price : pending

Payment Terms : L/C, T/T

Supply Ability : 20

Delivery Time : 5

Specimen area : 140*50mm

Friction speed : 60cpm

Friction load : 9N

Friction stroke : 100mm

Friction cone : ∮16or 19*25mm choice

Counter : LCD, 0～999,999

Volume : 53*40*32cm

Machine weight : 20kg

Power supply : 1#, AC220V, 3A

Contact Now

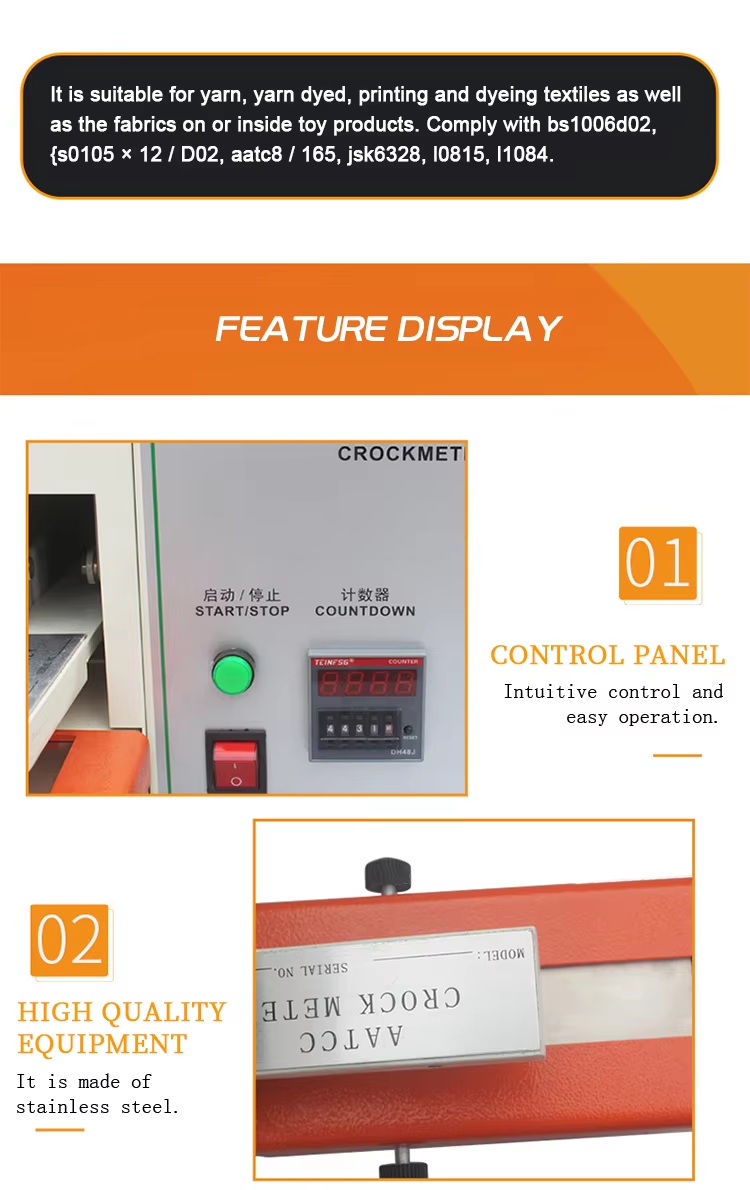

Color Fastness Tester for Fabric Leather, Electric Friction Decolorization Tester

Application

used for testing dry and wet rubbing color fastness of cotton, chemical fiber and blended fabrics.

This instrument is of integral design, mainly composed of base, friction drive mechanism and counter, with the specimen clip the specimen and sandpaper fixed on one side of the base.

The specimen and sandpaper are fixed in the side of the base by the specimen clamp, and the friction head equipped with white cotton cloth is made to make the reciprocating movement on the specimen with the prescribed stroke by shaking the handle, so that the white cotton cloth and the specimen rub against each other.

White cotton cloth and specimen friction, friction ten times after observation and gray card comparison assessment of white cotton cloth on the degree of adhesion of the color, the fabric specimen

After ten times of rubbing, observe and evaluate the degree of color sticking on the white cotton cloth by comparing with gray card, so as to judge the stability of dyeing or surface coating of the fabric specimen, and provide reference data for the evaluation and selection of materials. This instrument is suitable for

This instrument is suitable for all fabrics on or inside yarn, color woven, printed and dyed textiles and toy products. Electric Friction Color Removal Tester

Standards :

ISO105-X12, GB/T3920/5712/420, AATCC8/165, BS1006D02

Test Mode :

the sample with a piece of dry friction cloth and wet friction cloth respectively for friction, with gray sample card to evaluate the change of the sample Color and the dyeing condition of the friction cotton cloth;

Technical parameters:

1, friction head pressure: 9±0.2N
2, friction head: round Φ16mm;Rectangular 19 x 25.4 mm
3, crank turning times: 60 times/min
4. Reciprocating times: 10 times

5, friction head travel: 104 + 3mm
6, the sample size and thickness: 220×110×5mm
7, the test bench liner thickness of 0.25mm(water resistant 600 mesh sandpaper)
8. Motor power: 40W

9, Dimensions: 760×270×240mm (L×W×H)
10. Voltage: AC220V, 50HZ

11, instrument weight: about 20Kg
